These cables connect to a custom
power rail mounted up on the
UTA. RCA Connectors feed power
to the Mallincam Xtreme and an
Aux fan, via the 2.1mm DC
connectors.
This RG6 Quad Shielded Cable
sends Composite/BNC Video from
the Mallincam Xtreme to a small
LCD screen mounted up on the
Upper Tube Assembly (UTA) of the
20” Dob.

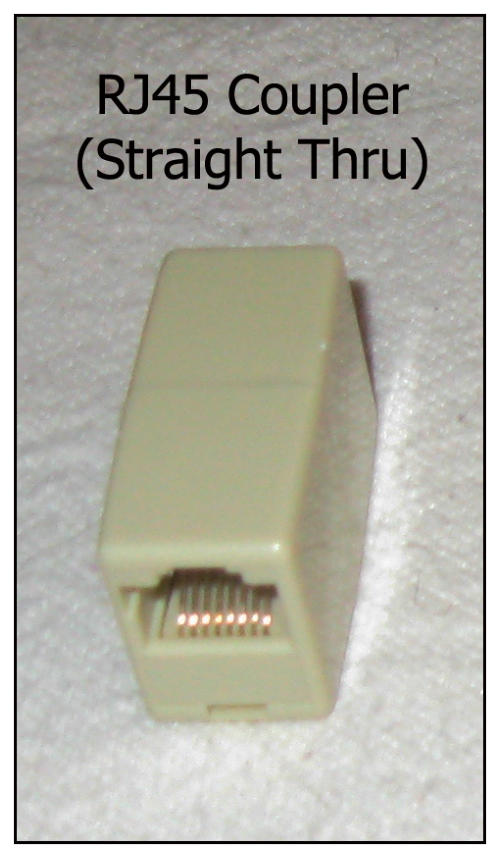

An RJ45 Stright Thru Coupler is
used to connect RJ45 pass-throu
cables to provide S-Video.
Couplers are available for all major Phone plug jack styles; RJ45, RJ12, RJ22, etc.
This cable was made to live in the
Rocker Box of the telescope. It
contains a complete RS232 Control
Cable for a Red LED Mallincam, as
well as an RJ45 Pass-Thru with an
RJ45 Coupler on the Truss pole end.
This cable was made to live inside a single
truss pole on this users 20” Dob. It contains a
RS232 8-pin Control Pass-Thru cable for a
MAllincam Xtreme, as well as an RJ45 Pass-
Thru for use with S-Video Baluns.
Large Gauge 100% Copper Wire is
available for High Current Devices
14 Gauge
16 Gauge
Sheathing an AIO cable system makes
it possible to send just about any
type of control, power, or video signal
to a remote astronomical setup.
At distances 3’ up to 250’ and more.
Below you will find examples of
possible add-ons for AIO v1/v2 cables,
when Sheathing is chosen:
Zengineering’s
AIO Cable Options
Call or Email for Pricing and Build Times (413)441-0673
parallax_m42@hotmail.com
All-In-One (AIO) cables are available with a
multitude of options for the astronomer with a multitude of devices.
- 14 Gauge Wire w/30Amp Power Poles
For High Current Devices like Dew
Heaters, etc.
- 16 Gauge Wire w/2.1mm DC
Male/Female Power Connectors
For Cameras, Mounts, etc.
- 24 Gauge Wire w/2.1mm DC
Male/Female Power Connectors
For Aux Fans, Cameras, Drives, etc.
- 24 Gauge Wire w/3.5mm (1/8th”)
Mono Connectors
For Focusers, filter wheels, etc.
Zengineering is often asked to make custom cables for new telescope builds
such as Large Dobsonian Reflectors that need concealed cabling and pass-thru
cables. Below you can see some examples of cables and parts that provide all the
connectivity you need while keeping everything looking clean.
An RJ45 Panel Mount connector
was mounted to the Rocker Box
and cleanly connects the
internal concealed cables to
and external laptop on a
“Stalk”.
A USB A to B Panel Mount
connector was mounted to the
Rocker Box and cleanly
connects the internal concealed
cables to and external laptop
on a “Stalk”.
Zengineering can work with you to create the ideal cable system for your specific
needs. Give us a call to discuss option, pricing, and build times. Orders can be
taken on the website as well as over the phone via all major credit cards.
(413)441-0673
